11mm duct rod electrical duct rod

Duct rods are ideal for underground work such as pulling cables and lines through conduits, pipes or ducts. Each cable rod is equipped with a sturdy steel frame and comes in different sizes according to the diameter and length of the cable.

Overview

11mm Duct Rod

FRP duct rod is mainly composed of core rod and reinforced outer layer. The rod body is made of alkali-free glass fiber through the pultrusion process, which has the characteristics of strong toughness, large pulling force, not easy to break, and anti-aging. The outer layer is made of highly durable, scratch-resistant ABS, which protects the core from mechanical damage. In addition, we can also produce 11mm duct rods with metal wire. This 11mm duct rod is also called a traceable duct rod or a detectable duct rod. Using a piece of copper or steel wire, the pipe rod can be traced easily through the pipe. After the fiberglass pole is produced, we will install removable copper heads on both sides of the pole to pull the rope into the pipe or conduit.

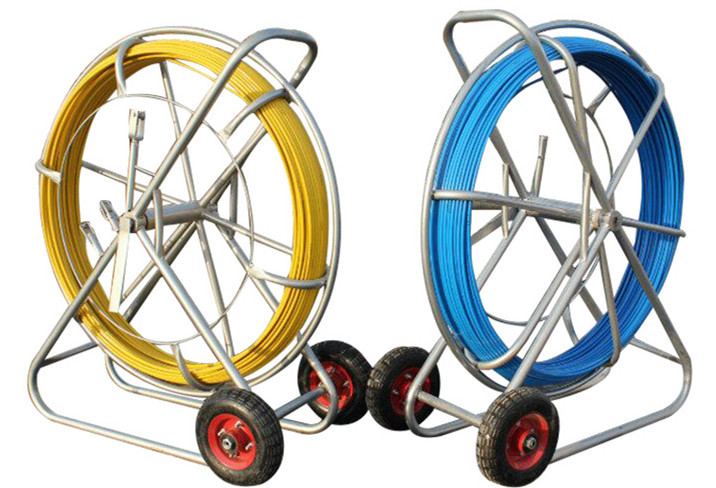

duct rodder


A large diameter duct rod is a specialized tool used to install cables and conduits in larger and often more complex underground or concealed spaces. These pipe rods are designed to handle the unique challenges presented by large pipes and ducts for which standard size pipe rods may not be adequate.

contact us

Product description of 11mm duct rod:

Material: high-strength fiberglass + ABS composite material

Other rod size: 10mm, 12mm,13mm,14mm,15mm,16mm,17mm,18mm

Accessories: Conduit rod accessories are additional tools or components that enhance the functionality and usability of the conduit rod during cable installation and related tasks. The specific accessories you need may depend on your project requirements and the type of duct rodder you are using.

Here are some common duct rod accessories:

Rod Grapple, Roller Guide, Drawing Head, Flexible Leader, Swivel Connector, Repair Kit

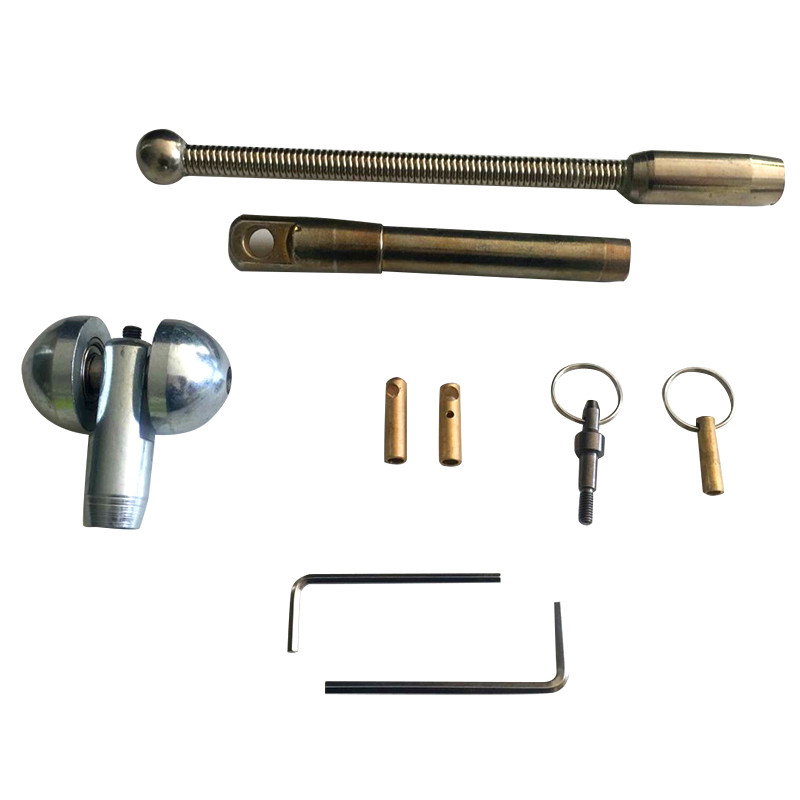

duct rod accessories


The following are some specific features and applications of 11mm duct rod:

Size: Large diameter duct rods are significantly thicker and stronger than standard size duct rods. They are typically used on conduits and conduits that are several inches or larger in diameter and can be found in industrial and utility applications.

Strength: These poles are made from high-strength materials such as fiberglass or composite, ensuring they can withstand the greater forces required to navigate and install cables in larger pipes.

Flexibility: Despite their larger diameter, these rods are designed to be flexible enough to fit through bends, curves and obstructions within conduits. They maintain structural integrity while providing necessary maneuverability.

Click here to view our other premium Fiber Duct Rodders.


Versatility: Large diameter duct rod can be used in a variety of industries, including utility (e.g., power, water, sewer), telecommunications, and industrial settings. They are particularly useful for installing large power cables, fiber optic cables or other critical infrastructure components.

Efficiency: Due to their size and strength, these poles can make the installation process more efficient and cost-effective. They can reduce the need for extensive digging and trenching, which can be time-consuming and expensive when using larger pipes.

Safety: Safety considerations are critical when working with large diameter duct rods. Proper training and following safety protocols are critical to avoiding accidents and damage to the infrastructure or the pole itself.

Traceability: Some large-diameter duct rods may contain traceability elements, such as fiberglass filaments impregnated with conductive material or the ability to attach a signal transmitter.  features help position rods and cables within the conduit for maintenance and repairs.

If you have any questions, please feel free to contact our duct rod experts.


Using 11mm duct rods:


fiberglass duct rodder outside the manhole - fiberglass duct rodder to the sides to ensure ground stability

Pull the catheter rod tip out of the spool and through the pilot hole on the rod frame

Slowly feed the rod into the cable duct, manhole or conduit

Manually push the duct rod through the duct - additional force is required to get into the elbow

If the conduit length exceeds the length of the conduit rod, attach the additional length of rod

When the duct rod reaches the far end of the duct, attach a pull cord or guy wire to the tip of the duct rod

From the entry end of the conduit, pull the conduit rod out of the conduit and back into the frame. Do not use mechanical methods to pull the catheter stem out of the catheter

Remove the pull cord or guy wire from the end of the conduit/conduit rod and thread the end of the conduit rod through the eyelet and back into the frame

We recommend conduit rods that are appropriately sized for your project. If you have questions, please contact us.

Here are details of our duct rod:

ItemRod diameter(mm) Rod length(m) Weight (kg) Frame size (mm)Frame diameter (mm)Fiberglass  core rod diameter(mm) ABS coating thickness(mm) Copper head diameter (mm) Rubber wheelsAccessories
LTRD11-100 Φ11 100 40 1200*470*1350 120081.511.3yesyes
LTRD11-120 Φ11 12043
LTRD11-150 Φ11 15048
LTRD11-180 Φ11 180 52
LTRD11-200 Φ11 20055
LTRD11-250 Φ11 25061
LTRD11-300 Φ11 30068
